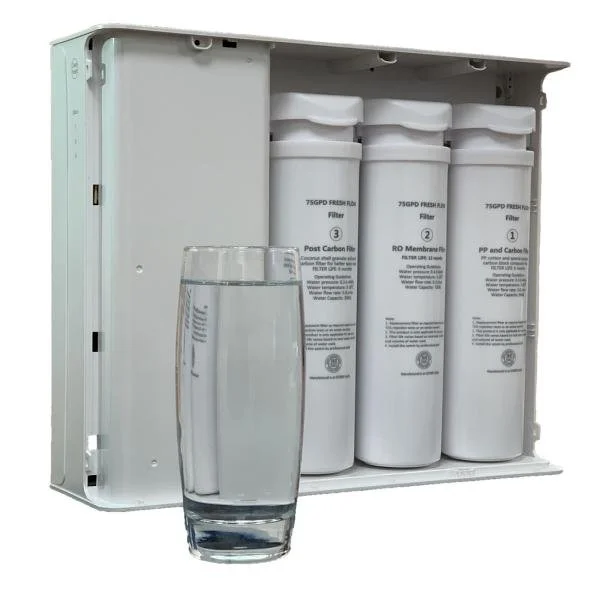

Compact 75 RO

• Removes approximately 95% of contaminants such as chlorine, lead, fluorides, bacteria and viruses, as well as unpleasant tastes and odours from the water.

• Delivers a highly pleasing, fresh tasting drinking water.

• Operates on mains water pressure using a semi-permeable membrane. This rejects impurities and washes them down the drain.

• The pure water is collected and stored in a tank for use at a later time.

• Uses just 1.75 litres of wash water to produce each litre of pure water

LEAFLET»»»

• Nominal pure water production rate 11 litres per hour

• Minimum / maximum operating temperature 4° to 38° C

• Minimum / maximum water pressure 0.5 to 3 bar*

• Membrane type Thin film composite (TFC)

• Recovery ratio 1.75 to 1

• pH range 6 to 9

• TDS level No more than 1500mg/l

• Water hardness No more than 170mg/l

• Pre & post filters Carbon block cartridge / T33

• Dimensions of membrane module (W x D x H), including power

• supply and elbows 120 x 395 x 340 mm

• Dimensions of air charge tank (Dia x H) including valve 195 x 360 mm

• Nominal capacity of air charge tank 3.5 litres

• Storage tank orientation for installation Vertical or horizontal

• Tank refill time 20 minutes

• Maximum installation distance possible from membrane to tank 1.5 meters

• Pre filter cartridge life 6 months

• Post filter cartridge life 12 months

• Membrane life Variable – approximately 3 years on soft water**

• Warranty (excluding consumables) 1 year

• Water flow to tap 3.0 litres/min (max)

• Power requirement (supplied with a 24V 2.1 amp transformer) 230V 50Hz
